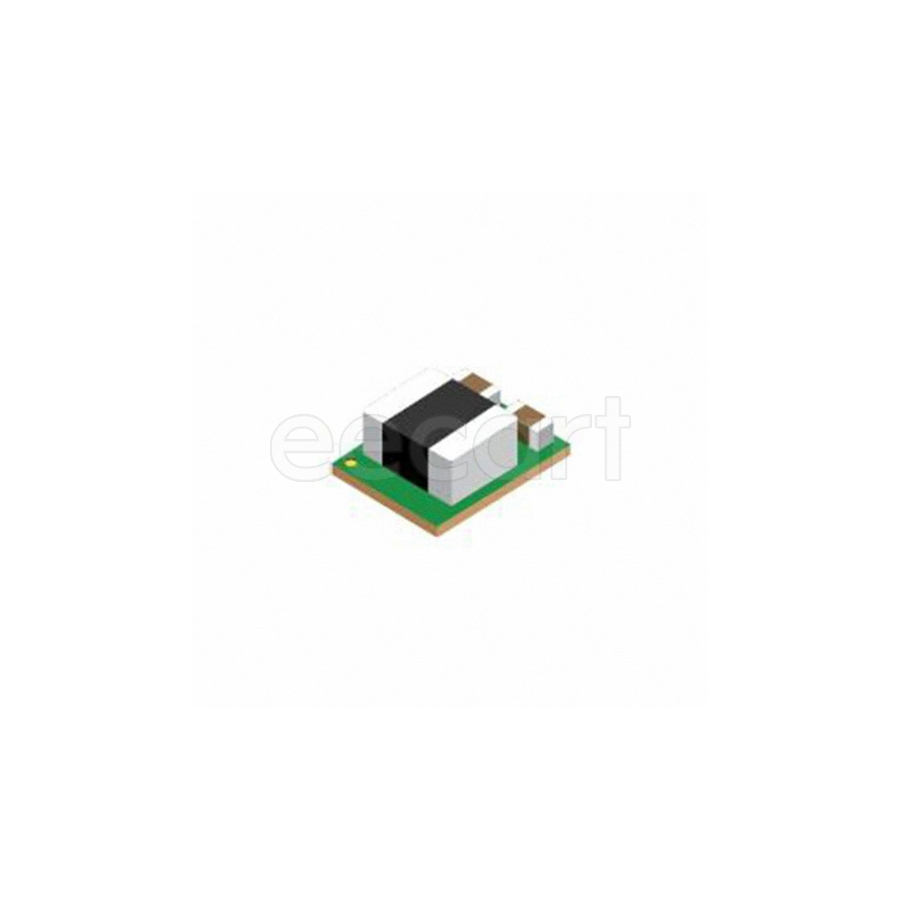

LMZM23600V3SILT
Manufacturer:
Texas Instruments
Mfr.Part #:
LMZM23600V3SILT
Datasheet:
Description:
Voltage Regulators - Switching uSIP-10 SMD/SMT Fixed 3.3 V
| Parameter | Value |
|---|---|
| Length | 3.8 mm |
| Width | 3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 1.615 mm |
| Thickness | 1.5 mm |
| RoHS | Compliant |
| Output Current | 500 mA |
| Output Voltage | 3.3 V |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 36 V |
| Min Supply Voltage | 4 V |
| Switching Frequency | 750 kHz |
| Number of Outputs | 1 |
| Nominal Supply Current | 28 µA |
| Output Power | 1.5 W |
| Max Junction Temperature (Tj) | 125 °C |
| Max Duty Cycle | 93 % |
| Schedule B | 8504408500 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Max Input Voltage | 36 V |
| Min Input Voltage | 4 V |
| Output Type | Fixed |
| Packaging | Reel |
Stock: 51
Distributors
pcbx
pcbxUnit Price$5.55168
Ext.Price$5.55168
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.55168 | $5.55168 |
| 10 | $4.59888 | $45.98880 |
| 25 | $4.28500 | $107.12500 |
| 50 | $3.99255 | $199.62750 |
| 100 | $3.72006 | $372.00600 |
| 300 | $3.46616 | $1039.84800 |
| 500 | $3.22952 | $1614.76000 |
| 1000 | $3.10866 | $3108.66000 |
